反向代理提示504或者ssl error

我的需求是通过地址url访问不同的docker容器。

例如:

  • www.zhengjiyuan.top为主网站,用于展示。
  • www.zhengjiyuan.top/chatgpt,用于使用docker容器A。
  • www.zhengjiyuan.top/halo,用于使用docker容器B。

我使用的方法是(失败的)

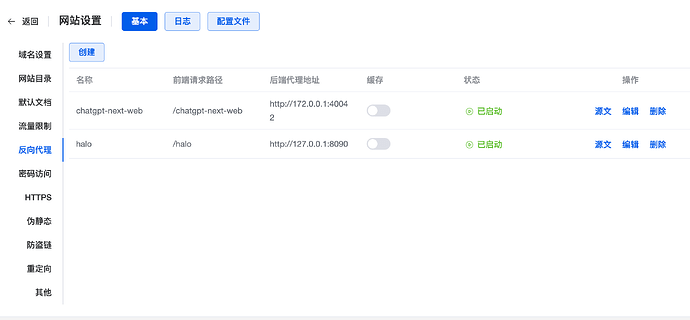

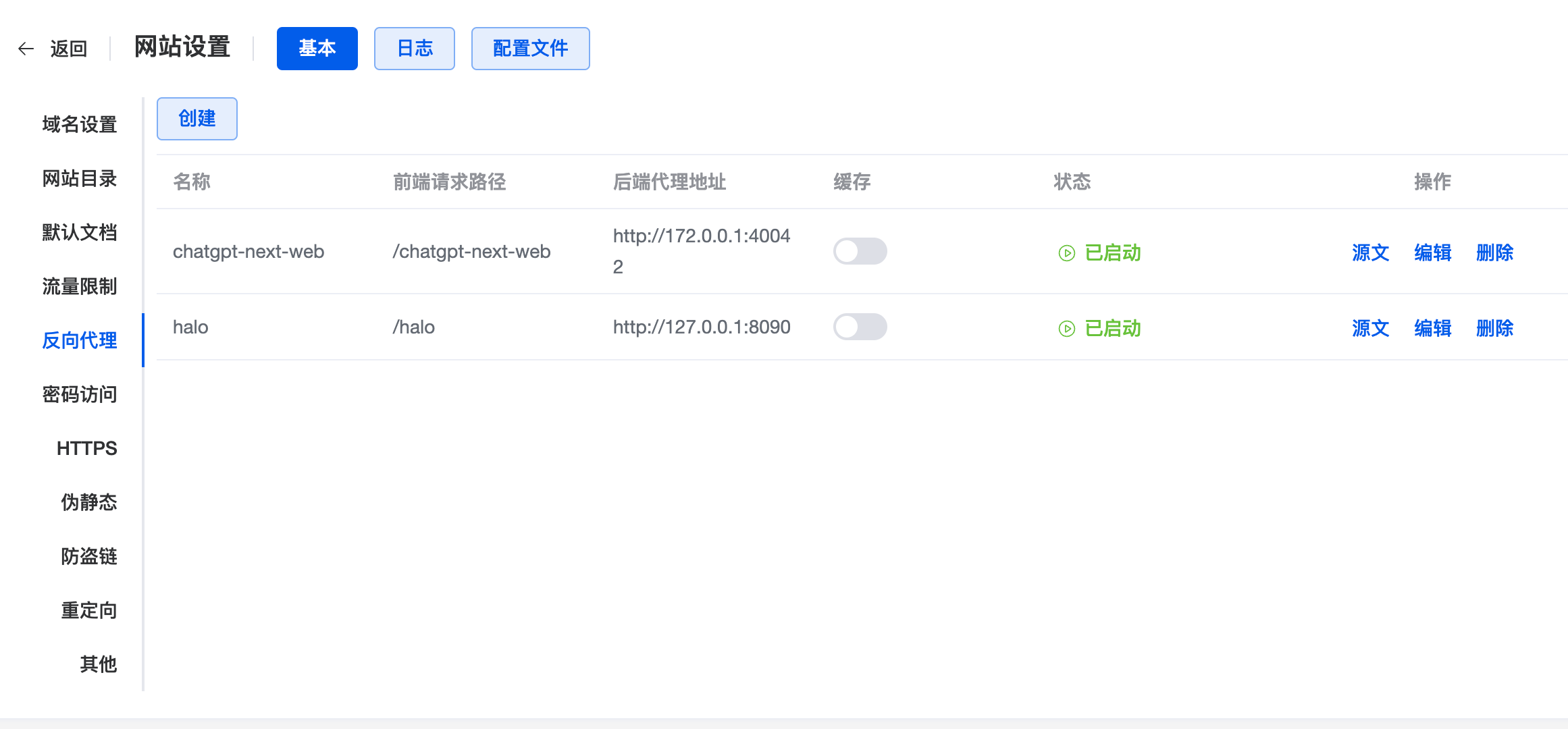

  1. 创建一个静态网站。
  2. 在静态网站中使用反向代理。
location ^~ /chatgpt-next-web {
    proxy_pass http://172.0.0.1:40042;
    proxy_set_header Host $host;
    proxy_set_header X-Real-IP $remote_addr;
    proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    proxy_set_header REMOTE-HOST $remote_addr;
    proxy_set_header Upgrade $http_upgrade;
    proxy_set_header Connection $http_connection;
    proxy_set_header X-Forwarded-Proto $scheme;
    proxy_http_version 1.1;
    add_header X-Cache $upstream_cache_status;
    proxy_ssl_server_name off;
    proxy_ssl_name $proxy_host;
    add_header Cache-Control no-cache;
    add_header Strict-Transport-Security "max-age=31536000";
}
  1. 尝试访问 chatgpt-next-web 返回 ERR_SSL_PROTOCOL_ERROR。
  2. 使用 IP + 端口 也无法访问。

目前我已进行的操作有:

  1. 配置了SSL证书。

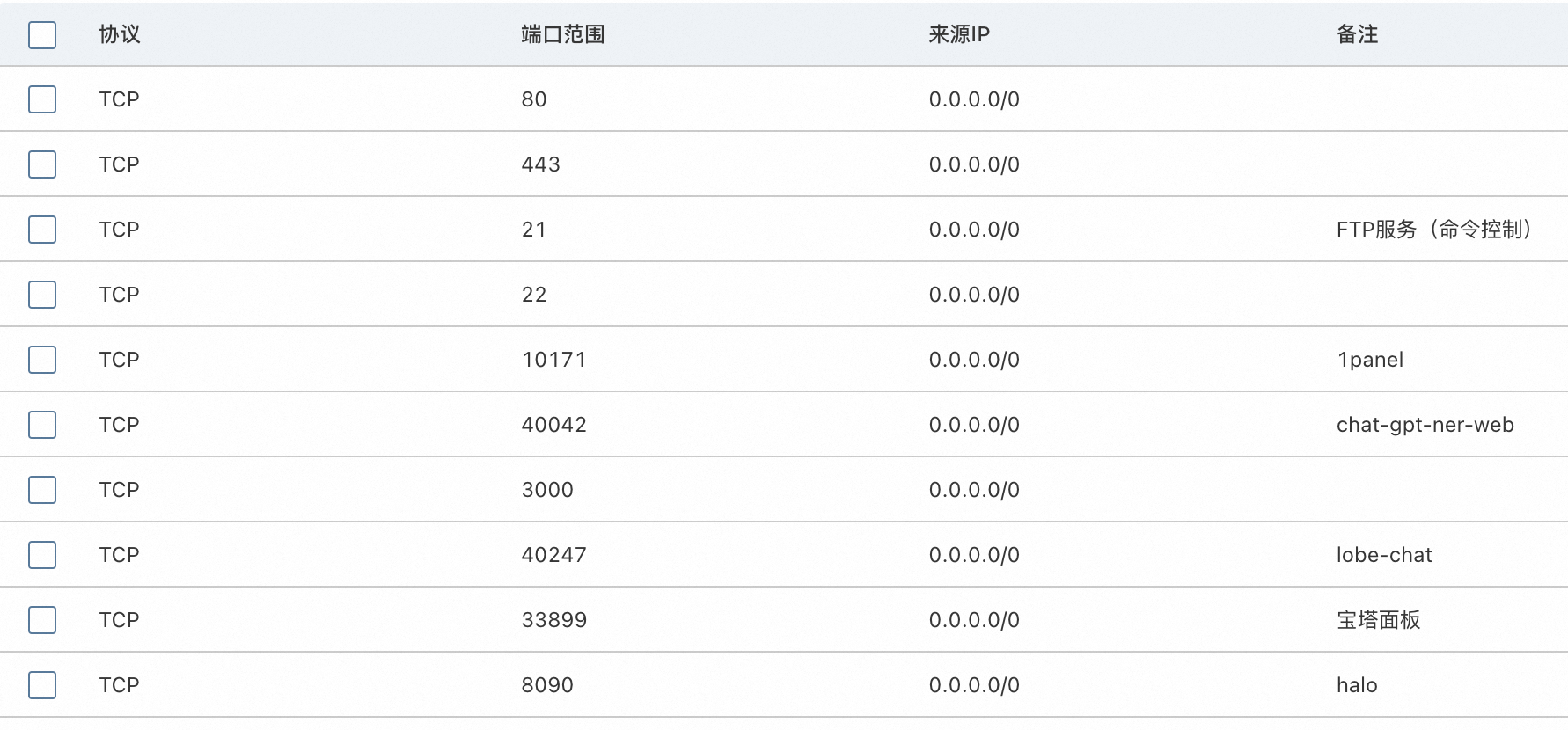

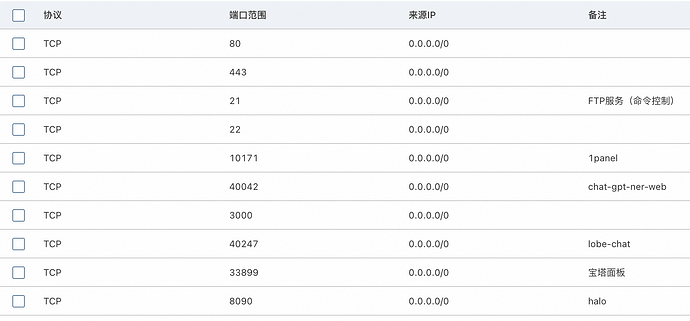

  2. 开放 80、443、 40042等端口。

openrestry配置文件:

server {
    listen 80 default_server;
    listen 443 ssl http2 default_server;
    server_name www.zhengjiyuan.top;
    index index.php index.html index.htm default.php default.htm default.html;
    proxy_set_header Host $host;
    proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
    proxy_set_header X-Forwarded-Host $server_name;
    proxy_set_header X-Real-IP $remote_addr;
    proxy_http_version 1.1;
    proxy_set_header Upgrade $http_upgrade;
    proxy_set_header Connection $http_connection;
    access_log /www/sites/www.zhengjiyuan.top/log/access.log main;
    error_log /www/sites/www.zhengjiyuan.top/log/error.log;
    location ^~ /.well-known/acme-challenge {
        allow all;
        root /usr/share/nginx/html;
    }
    root /www/sites/www.zhengjiyuan.top/index;
    add_header Strict-Transport-Security "max-age=31536000";
    include /www/sites/www.zhengjiyuan.top/proxy/*.conf;
    ssl_certificate /www/sites/www.zhengjiyuan.top/ssl/fullchain.pem;
    ssl_certificate_key /www/sites/www.zhengjiyuan.top/ssl/privkey.pem;
    ssl_protocols TLSv1.3 TLSv1.2 TLSv1.1 TLSv1;
    ssl_ciphers ECDHE-ECDSA-AES256-GCM-SHA384:ECDHE-RSA-AES256-GCM-SHA384:ECDHE-ECDSA-CHACHA20-POLY1305:ECDHE-RSA-CHACHA20-POLY1305:ECDHE-ECDSA-AES128-GCM-SHA256:ECDHE-RSA-AES128-GCM-SHA256:DHE-RSA-AES256-GCM-SHA384:DHE-RSA-AES128-GCM-SHA256:ECDHE-RSA-AES256-SHA384:ECDHE-RSA-AES128-SHA256:!aNULL:!eNULL:!EXPORT:!DSS:!DES:!RC4:!3DES:!MD5:!PSK:!KRB5:!SRP:!CAMELLIA:!SEED;
    ssl_prefer_server_ciphers on;
    ssl_session_cache shared:SSL:10m;
    ssl_session_timeout 10m;
    error_page 497 https://$host$request_uri;
    proxy_set_header X-Forwarded-Proto https;
}


大部分应用都不支持这样代理
Halo 1Panel 都不支持

1 个赞
